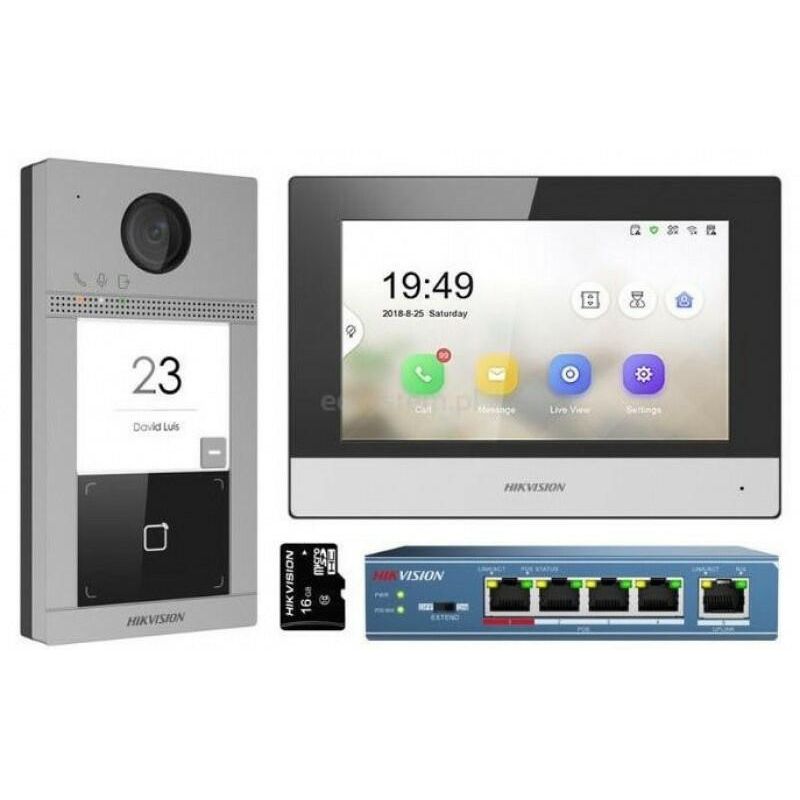

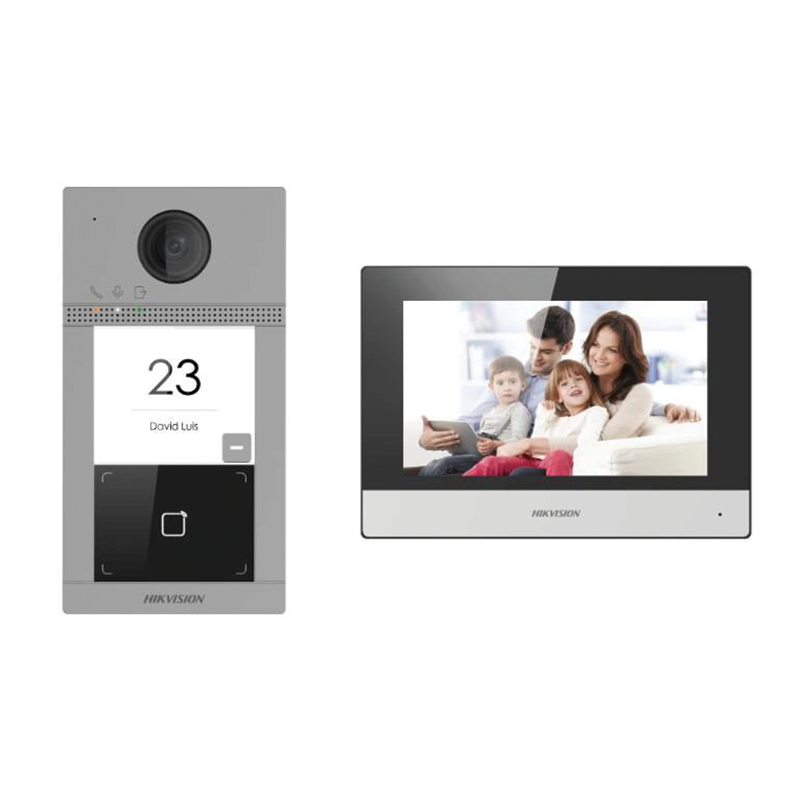

KIT VIDEOINTERFON IP format din: post interior si post exterior DS-KV8113-WME1 ; post interior (DS-KH6320-WTE1) cu Display TouchScreen color 7" rezolutie 1024x600 pixeli, microfon si difuzor incorporate, 16GB TF card inclus, Alarm In/Out 0/1 (comanda deschidere usa), RJ 45 10M/100M Self-Adaptive Ethernet Interface IEEE802.3af, standard PoE, Wi-Fi 802.11 b/g/n, card slot up to 32GB (livrat cu card 16GB, alimentare 12Vcc/1A sau POE IEEE802.3af ; post exterior (DS-KV8113-WME1): echipat cu camera video color rezolutie 1920x1080 pixeli, 25 fps, deschidere 124 grade, 120dB True Wide Dynamic Range, iluminator InfraRed efectiv pana la 3 metri, microfon, difuzor, RJ- 45 10/100 Mbps Self-Adaptive Ethernet Interface, Wi-Fi 2.4GHz, 13.56 MHz Mifare Card Reader, Buton sonerie (1 buton de apel configurabil sa sune simultan pana la 6 posturi de interior- 1 Master si 5 Slave-), intrare contact magnetic pentru Door Magnetic Status, RS-485 Half-Duplex Port, I/O Input 8/2, accepta TF card de pana la 32 GB, alimentare 12Vcc/1 A sau POE IEEE802.3af (livrat cu PoE switch), Weatherproof IP65, carcasa metalica, temperatura de functionare -40C pana la +53C, dimensiuni, 138 mm × 65 mm × 27 mm (montare aparenta).
Deschide (deschide contact) usa cu card-uri control acces Mifare (pana la 255 card-uri, Card Mifare 1k CARD, AR-TAGCI3W50F-MF06, AR-TAGCI3W50F-MF06, AR-TAGK73W20FMF08).
Apeleaza 1 statie de interior (nu apeleaza statii de interior selectabile). Realizeaza automat poze la deschiderea usii. Livrat cu 1 buc POE switch. Soneria apeleaza cu video SmartPhone-ul sau tableta Android/iPhone cu aplicatia HIK-Connect instalata; post exterior DS-KV6113-WPE1 (clasa de protectie la intemperii IP65, temperaturi de functionare 40° C to +60° C); https://youtu.be/2Eu2rjtbW7E.
